Manufacturing Solutions Inc.

Data Sheet

AZM170

The AZM170 Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 1 NO & 1 NC; 2NC

Data Sheet

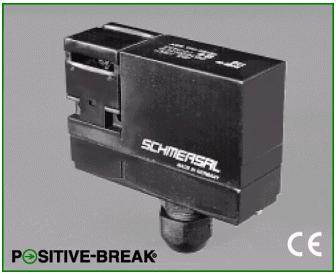

AZM170zi

The AZM170zi Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 1 NO & 1 NC; 2 NC

Data Sheet

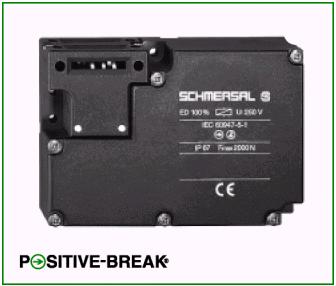

AZM161

The AZM161 Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 2 NO & 4 NC;

Data Sheet

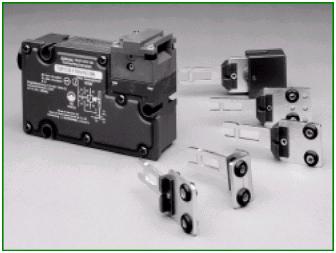

TZF/TZM

The TZF/TZM Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 2 NO & 1 NC

Data Sheet

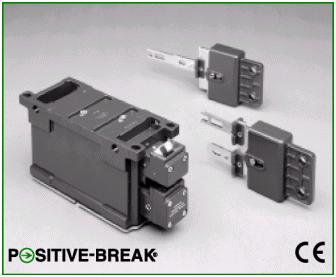

TKF/TKM

The TKF/TKM Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 2 NO & 2 NC

Data Sheet

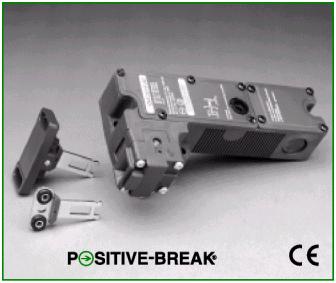

TZK

The TZK Series is designed for machines/work cells where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time delay, motion detector, position sensor or other suitable component.
-Contacts: 1 NO & 2 NC

Data Sheet

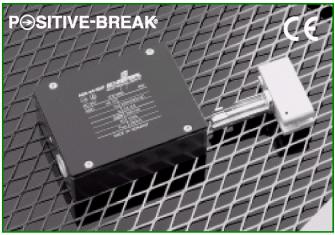

AZM415

The AZM415 Series is designed for movable machine guards where access to a hazardous work area must be controlled until safe conditions exist. Their solenoid-latching feature permits locking a machine guard until dangerous conditions, which may exist immediately after removal of power, have abated. Solenoid-latching may be controlled by a time-delay, motion detector, position sensor or other suitable component.
-Contacts: 2 NO & 2 NC; 3 NO & 3 NC

Data Sheet

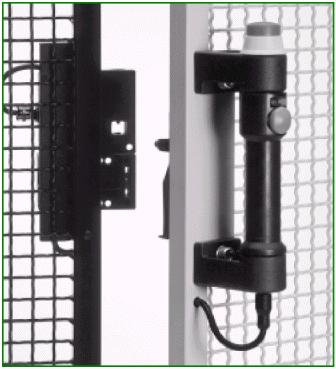

TG-1 Door handle

The TG-1 handle has an integrated button for unlocking spring-to-lock solenoid switches. There are two LEDs indicating if the door is locked (green) or unlocked (red).

Data Sheet

STS Safety Door Handle

The STS door handle system consists of one safety interlock switch (ordered separately), an actuator key and handle assembly (with or without emergency release handle), mounting plates, and an optional lockout/tagout device. An optional red interior release handle is available which opens the guard from the inside in case of an emergency.

Data Sheet

B25 Safety Door Handle

The Series BN25 is designed to allow easy realization of a combination door handle and safety interlock for use on light to medium weight hinged and sliding machine guards. Each unit consists of a door handle assembly with integral handle and safety interlock actuator key for operating a Series AZ17…zrk or AZM170…zrk interlock switch.

Warning: Machine safety products sold by Manufacturing Solutions are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. Manufacturing Solutions cannot certify that our products used solely or in conjunction with other Manufacturing Solutions or other vendors products will assure safety for any application.

Any person using or applying any products sold by Manufacturing Solutions is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

Manufacturing Solutions does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
