EZAutomation Touch Screen Panels

EZ3 Series6”
8”
10”
eztouch
EZTouch Plus
15”
eztouch
EZTouch Enhanced
4”
6”
8”
10”
EZTouch SE Series
4”
6”
8”
10”
EZWindows CE
6”
8”
10”
EZWindows HMI
10 ”
15”
eztouch



EZ Programming

• Consistently voted the easiest HMI programming software
• Single programming software for every model and size
• Exclusive On-Line Editing of your program with no downtime
• Transfer your existing EZTouch project seamlessly
• OEM Packager to send updates to customers without need for the programming software

Blazing Speed

• Faster Processor
• Faster Programming with USB and Ethernet (Built-in)
• Incredible Image Processing Speed
• Highly reactive Touch Screen response
• Fast and reliable PLC communications

EZ Connectivity to All PLCs

• Allen Bradley • Siemens
• Mitsubishi• Direct Logics
• Modicon • GE
• Omron • EZ PLCs

Stunning Displays

• Full 65,536 Color Spectrum offered
• Brighter Displays
• Higher Resolution

Data Highway + Remote I/O supported on option card
2 Serial Ports (RS232/422/485 and Ethernet Port Built in

2 USB Ports
Type A for Data Logging
Type B for Programming

Analog Resistive
Touch Screen

Over 65K
Colors

Micro SD
for Data Logging

EZ3-T6C-E EZ3-T6C-E Description: 6-inch color TFT, 65k colors, 320 x 240 screen resolution, 2 Serial Ports, 2 USB Ports, Built in Ethernet, 1 MicroSD card slot

Features: All Serial/Ethernet Drivers
DH+ card optional
Downloadable PDF
EZ3-T8C-E EZ3-T8C-E Description: 8-inch color TFT, 65k colors, 640 x 480 screen resolution, 2 Serial Ports, 2 USB Ports, Built in Ethernet, 1 MicroSD card slot

Features: All Serial/Ethernet Drivers
DH+ card optional
Downloadable PDF
EZ3-T10C-E EZ3-T10C-E Description: 10-inch color TFT, 65k colors, 800 x 600 screen resolution, 2 Serial Ports, 2 USB Ports, Built in Ethernet, 1 MicroSD card slot

Features: All Serial/Ethernet Drivers
DH+ card optional
Downloadable PDF

__________________________________________________

EZTouch Plus

EZTouch Plus Features:

  • 1024x768 Resolution
  • 4 USB ports.
  • 1GB Ethernet Port
  • Capability for network option boards, including DH+/RIO, Modbus+, DeviceNet, and Profibus
  • Dedicated Operating System
  • 15" Display
  • Expandable Memory SD Card
  • LED Backlight 400 nits

EZAutomation™ is pleased to announce the release of its new flagship addition to the well known EZTouch™ line of HMIs: the EZTouch Plus™.

EZTouch Plus™ is currently available in 15” and boasts a ground breaking feature set unlike no other HMI on the market.

  1. Stunning Display:
    EZTouchPlus™ boasts a stunning 15” LED backlit display with 16.2 MM Colors. With 400 Nits brightness and a 1024x768 resolution, it is one of the crispest and brightest displays on any HMI anywhere.
  2. Standard Features with no fuss:
    EZTouch Plus™ comes standard with 4 USB Ports, a 1 GB Ethernet port, built-in webserver, and a MicroSD card reader for additional memory. It is truly designed to be a “plug and play” experience with no fuss in part number selection and ease of implementation.
  3. Same EZ Software:
    EZTouch Plus™ is programmed with EZAutomation™’s same award winning EZTouch™ software as the rest of our HMI line, and the software allows for virtually seamless transition between models and protocols.
  4. Processing Power:
    With an Intel Atom E640 1 GHz processor with 1GB DDR2 RAM and a 4GB SSD Hard drive, the EZTouch Plus™ packs a punch in performance and productivity.  With a dedicated AVG Operating System, there are no overhead processes to worry about, and the processing power is at the beck and call of the HMI.
  5. PLC Connectivity:
    EZAutomation™ has always striven to provide a universally connective HMI experience to 95% of the PLCs available on the market, and EZTouch Plus™ is no different, providing an HMI with both Ethernet and USB drivers available. The Built-in 1 GB Ethernet port supports Ethernet drivers such as Allen Bradley’s Ethernet IP or DF1 Ethernet, Siemens ISO Ethernet, GE SRTP Ethernet, Modbus TCP/IP, AutomationDirect K Sequence over Ethernet, and many more. In addition, there are also two Serial ports that support most serial driver communications.
  6. Rugged Construction:
    EZTouch Plus™ is designed with a Nema 4/4X housing able to withstand harsh environments. The LED Backlight allows for a life of over 75,000 Hrs @ 55°C. In addition, the 5-Wire Analog resistive Touchscreen is designed to withstand pressure and repeated use.

__________________________________________________



Touch Panel HMIs

PC like graphics with SCADA features throughout the whole series

- Built-in Anti-glare Screen
- Brighter Longer Bulb Life
- Best Clarity at High Temps
- Exclusive On-line Edit
- Connect to over 90% of Installed PLCs

eztouch eztouch eztouch

EZTouch Enhanced Operator Interface introduced in 2001

The EZSeries Touchpanel was first introduced in 2001. They have since become one of the most popular brand of PLC operator Touchpanels primarily due to its ease of programming and a very aggressive price point. In January of 2005, the EZSeries Touchpanel was recognized by six different magazines' readership surveys as the highest overall value PLC touchpanel in North America.

We made an easy to use, simple operator interface that will save you a lot of engineering hours and design time due to its simplicity and ease of use. You don't need prior programming knowledge to design a screen. You do not need to attend any classes to learn how to program the EZSeries Touchpanel. It is Intuitive, it is Simple!

__________________________________________________

eztouch

These Touchpanels employ a unique new technology of wWite LED displays in place of the traditional CCFL bulbs. White LED increases the life of the HMI by a factor of 2, even at elevated temperatures.

White LED display has a 30-40% higher brightness rating, no wet bulb temperature issue like CCFL bulbs, and has a life of 75000 hrs. at 55°C. Twice the life at half the cost!!

__________________________________________________



A New Breed of Touch Panel HMIs

ETHERNET IP FOR CONTROL LOGIX
ETHERNET IP FOR MICROLOGIX
ETHERNET IP FOR SLC 500
MODBUS TCP/IP
AUTOMATIONDIRECT ECOM
EZPLC
GE'S SRTP

EZWindows CE HMI is the Windows CE version of our popular EZTouchpanel. It has a 330MHz Alchemy CPU and Windows CE Operating System. This allows the EZ Series HMIs to offer Windows Viewers such as PDF, X-cel and Powerpoint. The CE operating system also gives the EZWindows CE Touchpanel a unique ability to play a Training or Maintenance Video, a feature most loved by service departments of OEMs.

Even though there are a number of advanced Touchpanel HMIs in the market that have Windows CE as their operating system, they do not bring out the multi-tasking capability of Windows for customer use. These panels like C-more can run only the HMI application. The EZWindows CE Touchpanel is a departure from that thinking. We allow full Windows functionality avaiable to you as the user, and give you the flexibility of using or not using these Windows CE features.

The programming software for EZWindows CE HMI is the same as for the EZTouch HMI which allows complete interoperability between EZTouch Enhanced which has the proprietary operating system and EZWindows CE Touchpanel that has the CE operating system. Thus any project developed for one panel can be transferred to the other panel.

The EZWindows CE Touchpanel also has the same hardware foot-print as the popular EZTouch Enhanced panel to give the user a seamless transition between both types of panels.

The EZWindows CE Touchpanel has all the Enhanced software features of the EZTouch Enhanced. In addition having windows CE operating system this touchpanel has a unique ability, we call it "Quik Edit". This feature allows field upgrade to the touchpanel screens without need for a PC.

The EZWindows CE Touchpanel also has built-in Ethernet & USB besides its 2 serial ports.

The EZWindows CE Touchpanel is more than an HMI and it is also more than just a simple CE Touch Computer. It is a unique combination of both.

It is like having an advanced SCADA with no limitation on number of tags, yet have the capability of Internet browsing, Windows Viewers and at the same time talk to practically all types of PLCs and industrial networks.

__________________________________________________

Supports network hardware protocols such as Allen Bradley’s DataHighway Plus/Remote I/O, Profibus, Devicenet and Modbus Ports.

4 USB Ports

  • Any Windows Compatible
    Peripherals
  • Programmable Over USB

1GB Ethernet

  • AB Ethernet IP
  • DF1 Ethernet
  • Siemens ISO Ethernet
  • GE SRTP - Modbus TCP/IP
  • Remote Access & Control

MicroSD Card Reader

2 Serial Ports
Fanless
Nema 4/4X

Winner, Control Engineering’s
2014 Engineers’ Choice Awards

Category: Hardware - HMI, Operator Interface, Thin-Client

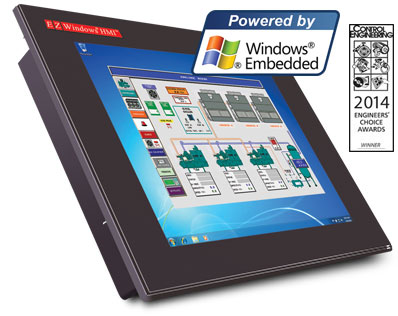

From the creators of the award winning EZTouch™the new EZWindows HMI combines the easy to use EZTouch™ software known for its reliability and universal connectivity to all PLCs, with a powerful Windows 7 Fanless Industrial Panel Computer. The new EZAutomation EZWindows HMI, equipped with an Intel Atom E640 1 GHz processor with 1GB DDR RAM, takes Panel PCs to a new level.

Available in both 10” and 15” models, the EZWindows HMI comes standard with 4GB of SSD Memory, 4 USB ports, a MicroSD card reader, 2 Serial Ports, and a 1GB Ethernet Port. With an all-in-one package, the EZPanel PC HMI™ can be used as an Industrial PC, an HMI, or a complete SCADA system. EZAutomation’s EZPanelPC HMI™ is fanless and designed for industrial environments with a Nema 4/4X rated housing.

The USB ports and MicroSD card reader offer virtually limitless memory as well as universal connectivity to the peripherals of your choice such as Printers, Bar-Code Scanners, Weigh Scales, Cameras, etc.

The EZWindows HMI is scalable and adjustable to any size window to allow for multi-tasking with other software packages. The ability to install any software package of your choice allows you to develop, monitor and adjust your HMI or PLC programming directly on the screen without interrupting HMI operations.

In addition to traditional Serial and Ethernet communication protocols, EZAutomation’s EZWindows HMI also offers various Network hardware protocols such as Allen Bradley’s DataHighway Plus/Remote I/O, Profibus, Devicenet and Modbus Plus.


Connects to
Network Printers
View PowerPoint
Excel & Videos
Integrated Camera
Surveillance

All Regular Windows
Drivers Supported
16.2 MM Colors
LED Backlight
400 Nits
1024x768 Resolution
