Manufacturing Solutions Inc.

Data Sheet

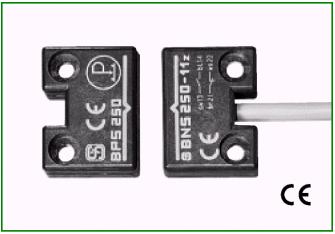

BNS 250

The Series BNS250 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 1 NO & 1 NC; 1 NO & 2 NC

Data Sheet

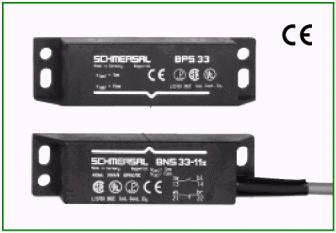

BNS 33

The Series BNS33 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 1 NO & 1 NC; 1 NO & 2 NC; 1 NO; 1 NC; 2 NC

Data Sheet

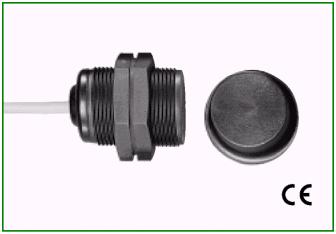

BNS 303

The Series BNS303 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 1 NO & 1 NC; 1 NO & 2 NC

Data Sheet

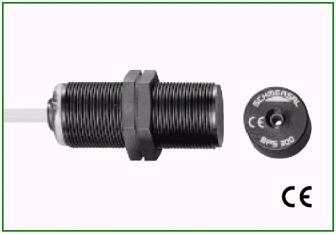

BNS 30/300

The Series BNS30 and BNS300 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 1 NC

Data Sheet

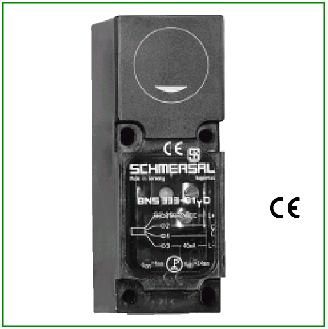

BNS 333

The Series BNS333 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 1 NC

Data Sheet

BNS 16

The Series BNS16 coded-magnet sensors are designed for use as a safety interlock on movable machine guards. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The sensor outputs will only change state in the presence of their matched magnetic field array.
-Contacts: 1 NO & 2 NC

Data Sheet

BZ 16

The Series BZ16 coded-magnet sensors are designed for use as a safety interlock switch on movable machine guards/articulating robot arms. Each sensor set consists of a multiple reed switch unit and a coded-magnet actuator. The reed switches, wired in series, will only close in the presence of their matched magnetic field array.
-Contacts: 2 NC; 1 NO & 1 NC

Selection Chart

AES

BNS SERIES - Compatable safety controllers selection chart.

Warning: Machine safety products sold by Manufacturing Solutions are Safety components only.

The purchaser/installer is solely responsible for the application of these components and ensuring all necessary steps have been taken to assure each application and use meets all performance and applicable safety requirements and/or local, national and/or international safety codes as required by the application. Manufacturing Solutions cannot certify that our products used solely or in conjunction with other Manufacturing Solutions or other vendors products will assure safety for any application.

Any person using or applying any products sold by Manufacturing Solutions is responsible for learning the safety requirements for their individual application and applying them, and therefore assumes all risks, and accepts full and complete responsibility for the selection and suitability of the product for their respective application.

Manufacturing Solutions does not provide design or consulting services, and cannot advise whether any specific application or use of our products would ensure compliance with the safety requirements for any application.
