ST14

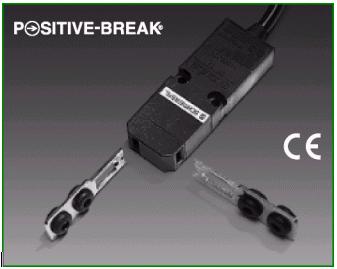

The ST14 Series is designed for use with movable machine guards which must be closed for operator safety. Their twopiece, tamper-resistant design, and positive-opening NC contacts, provide a significantly higher level of safety than conventional, spring-driven switches whose contacts can weld or stick shut. Their NEMA 4 (IP67) rating make them ideal for interlocking safety guards in hostile environments. Their compact design allows use in applications where space is severely limited.
-Contacts: 1 NO & 1 NC; 2NC

Data Sheet

AZ17

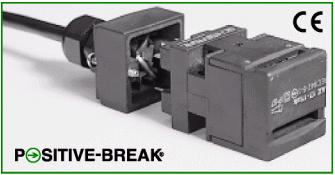

The compact Series AZ17 is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC; 2NC

Data Sheet

AZ17zi

The compact Series AZ17zi are designed for use with movable machine guards which must be closed for operator safety. Their tamper-resistant design, and positive-opening NC contacts, provide a significantly higher level of safety than conventional spring-driven switches whose contacts can weld/stick shut. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC;2NC

Data Sheet

AZ15/16

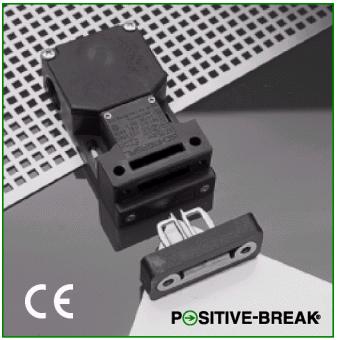

The Series AZ15/16 is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NC; 1 NO & 1 NC; 2 NC; 1 NO & 2 NC

Data Sheet

AZ16zi

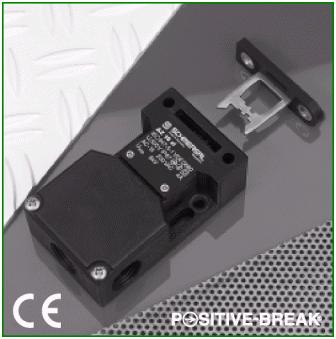

The Series AZ16zi are designed for use with movable machine guards which must be closed for operator safety. Their tamper-resistant design, and positive-opening NC contacts, provide a significantly higher level of safety than conventional spring-driven switches whose contacts can weld/stick shut. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NC; 1 NO & 1 NC; 2 NC; 1 NO & 2 NC

Data Sheet

TZG

The Series TZG is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 1 NC; 2 NC

Data Sheet

SDG

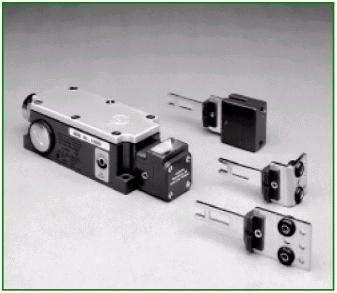

The Series SDG is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their IP67 rating makes them ideal for interlocking safety guards in hostile environments.
-Contacts: 1 NO & 2 NC; 2 NO & 1 NC; 3 NC

Data Sheet

AZ335

The AZ335 Series is designed for use with movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And the switch's tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means. Their rugged metal housing and IP67 rating make them ideal for interlocking safety guards in industrial and hostile environments.
-Contacts: 1 NO & 1 NC; 2 NC; 1 NO & 2 NC; 3 NC

Data Sheet

SHGV

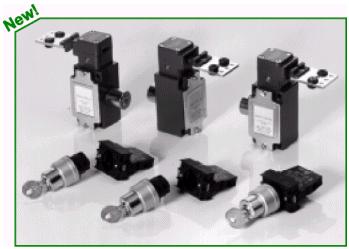

The SHGV Series consist of a guard-mounted mechanical locking device and a 2-position key operated selector switch for control panel mounting. This unique key transfer system assures the removal of power before allowing the access control guard to be open without the need for electrical wiring at the interlocked machine guard location.
-Contacts: 1 NO & 1 NC

Data Sheet

AZ415

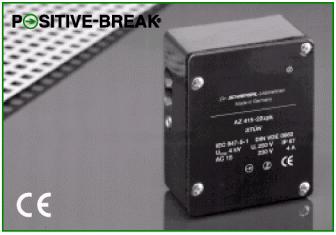

The AZ415 Series is designed for movable machine guards/access gates which must be closed for operator safety. Their positive-opening NC contacts provide a significantly higher level of safety than conventional springdriven switches whose contacts can weld or stick shut. And their tamper-resistant design prevents bypassing with simple tools, bent wires or other readily available means.
-Contacts: 2 NO & 2 NC

Data Sheet

STS

The STS door handle system consists of one safety interlock switch (ordered separately), an actuator key and handle assembly (with or without emergency release handle), mounting plates, and an optional lockout/tagout device. An optional red interior release handle is available which opens the guard from the inside in case of an emergency.

Data Sheet

B25

The Series BN25 is designed to allow easy realization of a combination door handle and safety interlock for use on light to medium weight hinged and sliding machine guards. Each unit consists of a door handle assembly with integral handle and safety interlock actuator key for operating a Series AZ17…zrk or AZM170…zrk interlock switch.

Data Sheet

ZSD

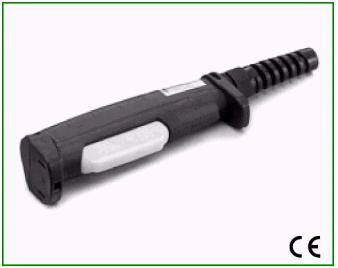

The ZSD is a hand-held "dead man" switch with 3 operating positions - OFF-ON-OFF. The machine/robot can be operated in the "on" position. It provides safety based on normal human behavior of either releasing or squeezing the actuator in an emergency situation.
