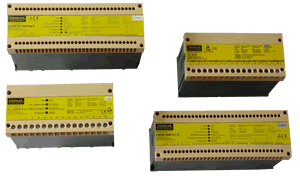

K-Series

Control-units

Small design
Plug-in pinboard
For DIN rail mounting

back to Feissler Safety Products

Function outline

Function

LSUW N1K

LSUW N1Muting-K

LSUW NSR 3-1 K

ULSG

Connectably to LSUW
transmitter / receiver

X

-

Connectablly to EU2K
transmitter / receiver

X

-

Connectablly to ...LVT and ...LCT Light curtain
transmitter / receiver

...LVT*

...LVT

X

Two autocontrolled normally open contacts
for monitoring the following dangerous machine

X

Monitoring
e.g. on short-circuit and transverse

X

-

Start controle
prevents automatic start when switching on on

X

-

Restart controle
prevents automatic start with the release of the light-barrrier

X

-

Valve or contactor monitoring
monitors their fixed going or clamping

X

Protection operation
with restart barrier during the total cycle

X

-

Protection operation
without-restart-locks, with valve or contactor controle

-

X

-

Protection operation
with restart control and cyclic testing

-

X

-

Protection operation
with restart control during the dangerous movement

-

X

-

1-or 2 clock-drove
protection and control operation when cykl. fitting in the to be protected machine

-

X

-

Programmable function
All operating modes are selectable by cable at the control-unit

-

X

-

Bypass (Muting)
Intermittent bypass of the light-barrrier, for distinction man flow of material

-

X

-

Control output floating

X

Output voltage 24V DC
to link of receiver and other things.

X

Input voltage 24V DC

O

X

Input voltage 230V AC

O

X

Input voltage 115V AC

-

X

(X) = serie (O) = alternatively (-) = missing

*only 24V-DC-Version
