| Fiessler Programmable Safety Center |
FPSC |
|
| |
|
- Flexible Hard- and Software concept
- Available with a safe bus system or/and two counter inputs
- Reduction of expenditures in Mounting and Installation
- Easy programmable
- Software modules tested and certificated
- Safety category 4 according to EN 954-1, SIL 3 according to IEC 61508
- PL a through PL e according to prEN 13849-1
- Compact Safety SPS
- Minimum response time
back to Feissler Safety Products |
| |
New - Central unit with counter inputs available! |
|
| |
|
| |
|
| |
|
• shears |
• machining center |
• final assembly |
• hydraulic press |
• testing automat |
• concatenated plants |
• materials handling equipment
|
• pneumatic press |
• special machines |
• manual machines |
• test stands |
• pressbrakes |
• special plant |
• robotics cells |
|
|
| |
|
| |
The
FPSC Fiessler Programmable Safety Center is a programmable electronic
safety for personal protection, i.e. for safety functions. The FPSC
complies with the highest safety requirements:
• SK1 through SK 4 according to EN 954-1
• SIL 1 through SIL 3 according to EN IEC 61508
• PL a through PL e according to prEN 13849-1
The product family FPSC provides maximum flexibility within its
hardware and software structure. The FPSC - AD version offers the
possibility to connect decentralized I/O modules via the implemented
safety bus. This guarantees a modular system design that offers
flexibility therefore reducing the costly and often elaborate
configuration of the safe system bus.
The safety-related functions are programmable by using pre-assembled and tested software modules. The chaining
is made by simple assignment of input , i.e. output adresses.
Intermediate data are stored in the temporary storage. There are
various ready-to-use software modules at your disposal. For the
communication with a superior control, i.e. for the operating sequence
control or technology control, a serial interface is provided. The
transfer of data for visualizing as well as the transfer of
machine-relevant data can de realised via this interface.
The simple snap-on mechanism for fastening the items on the DIN rail in
the switch cabinet considerably reduces the installation expenditure of
the items of the product family. |
| |
Technical data |
| |
| |
FPSC- B / FPSC- AD / FPSC- B-C / FPSC- AD-C (base units) |
FPSC-RSxxx (decentralized modules) |
| power supply |
24V DC (19,2....30V DC) max. 10% residual ripple |
24V DC (21,6....26,4V DC) max. 10% residual ripple
|
| load current |
typ. 350mA |
typ. 350mA |
| protection of the.... |
housing and terminals IP20 |
housing and terminals IP20 |
| Dimensions (HxBxT) |
127x390x80 mm |
127x127x129 mm |
| weight |
1,65 kg |
1 kg |
| operation temperature |
0.....+60°C |
0.....+45°C |
Minimum response times |
1ms |
according to the configuration |
|
| |

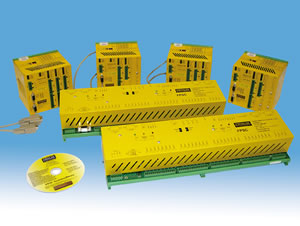

Overview of the product family |
| |
FPSC, hardware : safe base units |
TYP |
fast counter inputs (0.5Mhz) |
safe inputs |
fast safe inputs |
fast safe outputs |
fast safe outputs, bi-polar switching |
fast safe outputs, monopolar switching |
serial interfaces |
safe bus interface for enhancing by decentralized I/O modules |
FPSC-B |
- |
32 |
4 |
4 |
4 |
8 |
2 |
- |
FPSC-AD |
- |
32 |
4 |
4 |
4 |
8 |
2 |
yes |
FPSC-B-C |
2 |
32 |
4 |
4 |
4 |
8 |
2 |
- |
FPSC-AD-C |
2 |
32 |
4 |
4 |
4 |
8 |
2 |
yes |
|
| |
FPSC, hardware: safe decentralized modules |
TYP |
safe inputs |
safe outputs |
safe bus interface |
FPSC-RS8I |
8 |
- |
yes |
FPSC-RS16I |
16 |
- |
yes |
FPSC-RS24I |
24 |
- |
yes |
FPSC-RS4O |
- |
4 |
yes |
FPSC-RS8O |
- |
8 |
yes |
FPSC-RS12O |
- |
12 |
yes |
FPSC-RS8I4O |
8 |
4 |
yes |
FPSC-RS8I8O |
8 |
8 |
yes |
FPSC-RS16I4O |
16 |
4 |
yes |
|
| |
FPSC, hardware: non-safe decentralized signalling modules |
TYP |
non-safe inputs |
non-safe outputs |
CAN bus interface |
FPSC-RM8IN |
8 |
- |
yes |
FPSC-RM8ON |
- |
8 |
yes |
|
| |
Software |
| |
|
FPSC - PR-S, Programming software
Software for the parameterization of the base units
S: single user license M: multi-user license |
Form for requirement for our free FPSC demo software! |
|
|
FPSC
- Diag, Diagnosis and Analyzing Software Software for the
back-analyzing of the user program and for visualizing of both inputs
and outputs, for the visualization of the status of the temporary
storage and of the system status.
S: single user license M: multi-user license |
|
| |
Accessories |
| |
|
|
Fiessler Textdisplay - HMI :
The Fiessler Elektonik Human Machine Interfaces are used for diagnosis of intelligent controller units like system family FPSC and AKAS. |
|
FPSC-Profibus-DP:
The
FPSC-Profibus-DP serves to adapt a Modbus port from the FPSC to the
ProfibusDP to EN 50 170. In this application, it functions as a gateway
and operates as the ProfibusDP Slave. It can be operated by any
standard-compliant Profibus Master. ....read more Infos |
|

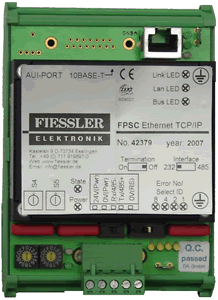

FPSC-Ethernet-TCP/IP:
The FPSC-Ethernet-TCP/IP module serves to adapt a serial port of the FPSC to an Ethernet with TCP/IP-protocol. In this application, it functions
as a gateway and operates as a server. It can be operated at any
processing system with TCP/IP-protocol.......mehr Infos |
|
Contact Extension:
The contact extension FSEM serves FPSC to the extension or contact reinforcement for the safe
control. Applications up to the category 4 after EN 954-1 can be
realized. |
FPSC - RS232 cable |
Cable between the programming unit (PC, Notebook etc.) and the base units for programming the parameters. |
FPSC - USB / RS232 adaptor |
Interface converter from USB standard to RS232 for entering the parameters into the base units. |
FPSC - CAN cable |
cable for the safety-related networking of the decentralized modules and the base unit |
|
| |
Download |
|
|
|
|
FPSC |
Appliance description |
|
|
|
| |
